Turret 4/SLM

Temperature-controlled four-position turret sample changer for an SLM-8000 or SLM 8100 Spectrofluorometer
Product Overview

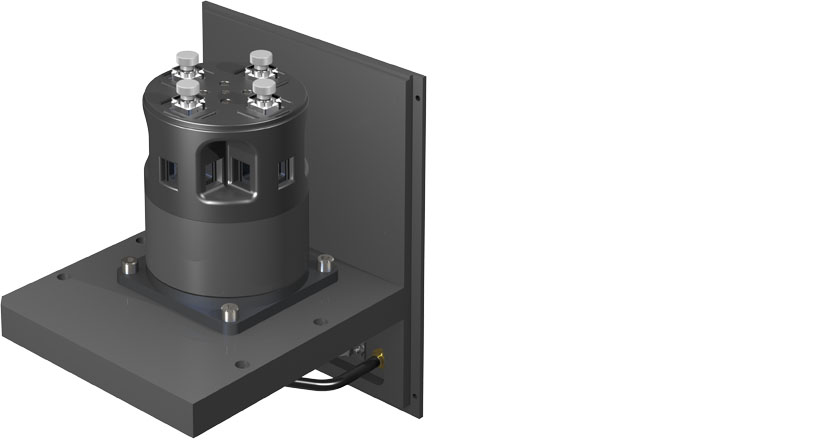

The Turret 4/SLM is a 4-position turret cuvette changer for the rebuilding of the venerable old SLM 8000 or 8001 Fluorimeters. The Turret 4/SLM provides rapid, precise temperature control from -15 °C to +110 °C for to up to four cuvettes. There are three optical ports around each cuvette with dry gas purging to minimize condensation when working at cold temperatures. Precise, stepper-motor-driven magnetic stirring is available in each cuvette ensuring that each sample in the turret is studied under nearly identical conditions. A properly rebuilt SLM fluorimeter should have full control of the functions of the TC 1/Multi Temperature Controller.

Product Features

Four cuvette positions
Rapid, precise temperature control
Highly uniform temperature in each cuvette
Variable magnetic stir speed same in each cuvette
Sample tray with utilities brought to front panel
Dry gas purge
Probe input for sample temperature
NIST-traceable temperature calibration

  • Technical Specifications
    Number of cuvettes controlled
    4
    Typical use
    Absorbance, fluorescence
    Standard cuvette size (outside)
    12.5 mm x 12.5 mm
    Optical ports per cuvette
    3
    Optical port dimensions
    10 mm high x 8 mm wide
    Built-in optical slit holders
    3 per cuvette
    Windowed jacket available
    No
    Factory set temperature range
    -40 °C to +110 °C
    Temperature range easily achievable
    -15 °C to +110 °C
    Temperature precision
    ±0.01 °C
    Temperature accuracy
    ±0.20 °C from -20 ⁰C to +110 ⁰C
    Temperature reproducibility
    Better than ±0.09 °C
    Magnetic stirring motor type
    Stepper under each cuvette
    Magnetic stirring speed range
    1-2500 rpm
    Default stirring speed
    1200 rpm
    Stirring speed best performance
    60-1800 rpm
  • Basic Package

    Turret 4 – 4-Position cuvette changer
    TC 1/Multi – Temperature Controller
    Floor and front panel with utility access
    Bath 100 – Circulator
    NIST-traceable calibration and performance data
    Accessories – Four magnetic stir bars, tubing, cables, optical slits and opaque cover

  • Accessories
