t2 Sport/T80

Peltier-driven temperature control for the PG Instruments T80+ Spectrophotometer
Product Overview

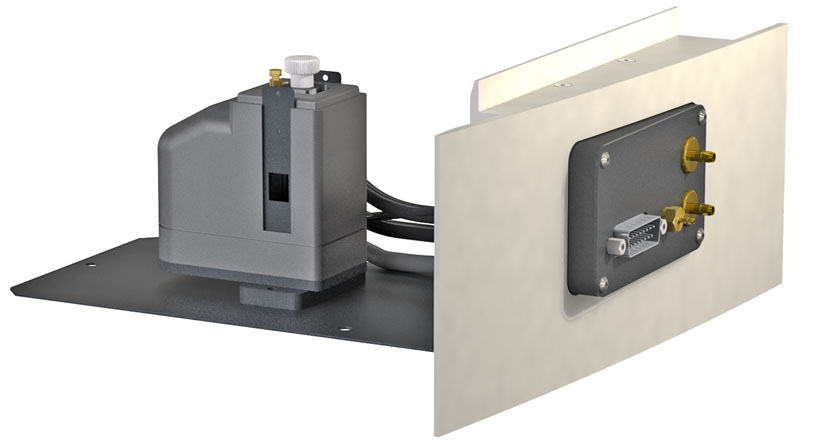

The t2 Sport/T80 is an inexpensive, compact cuvette holder for use in PG Instruments T80+ Spectrophotometer. Use it for temperature ranges of about -15 °C to 110 °C. The t2 Sport/T80 mounts in the sample compartment of the spectrophotometer with utilities conveniently routed to the front panel. Operate the TC 1/Single Temperature Controller using the menu button or control via optional program T-App.

Product Features

Rapid, precise Peltier temperature control
Variable speed magnetic stirring
Dry gas purge for work at low temperature
Cuvette lifter for removal of cuvette
Probe input for sample temperature
NIST-traceable temperature calibration

  • Technical Specifications
    Number of cuvettes controlled
    1
    Typical use
    Absorbance
    Standard cuvette size (outside)
    12.5 mm x 12.5 mm
    Optical ports per cuvette
    2
    Optical port dimensions
    12 mm high x 10 mm wide
    Cuvette z-height
    8.5 mm or 15 mm
    Windowed jacket available
    No
    Factory set temperature range
    -40 °C to +110 °C
    Temperature range easily achievable
    -15 °C to +110 °C
    Temperature precision
    ±0.02 °C
    Temperature accuracy
    Better than ±0.15 °C from 0 ⁰C to +80 ⁰C
    Accuracy full range
    Better than ±0.3 ⁰C from ‐15 ⁰C to +110 ⁰C
    Temperature reproducibility
    Better than ±0.07 °C
    Thermistor probes accepted
    Series 400 or Series 500
    Magnetic stirring motor type
    DC
    Magnetic stirring speed range
    100-2500 rpm
    Default stirring speed
    1200 rpm
    Stirring speed best performance
    200-1800 rpm
  • Basic Package

    t2 Sport – Temperature-controlled cuvette holder
    TC 1/Single – Temperature Controller
    Base plate, post (standard z-height = 15 mm) and modified front panel
    Reference cuvette holder without temperature control
    BATH 10 – Circulator
    NIST-traceable calibration and performance data

  • Accessories
