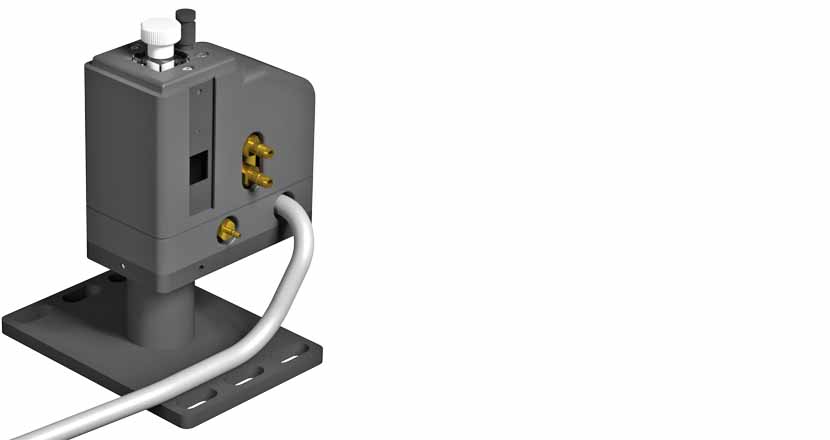

t2 Sport

User-customizable Peltier-driven temperature control with two optical ports
Product Overview

The t2 Sport is an inexpensive, compact, standalone, temperature-controlled cuvette holder. The t2 Sport is provided with a post and a standard base with a hole pattern for mounting on an optical breadboard. With optical ports on each side of the cuvette, use the t2 Sport for absorbance measurements or other experiments in which laser beams or other light is passed through the cuvette from one side to the other. When mounted in the open, use it for temperature ranges of about 0 °C to 110 °C, although much colder temperatures could be used if the cuvette holder is maintained in an enclosed dry environment. Use the t2 Sport to observe absorbance spectra at precisely maintained temperatures, or for temperature ramping, to observe how absorbance changes with temperature. Operate the TC 1/Single Temperature Controller using the menu button, control via optional program T-App, or write your own program for control.

Product Features

Rapid, precise Peltier temperature control
Variable speed magnetic stirring
Dry gas purge for work at low temperature
Mounting base for use on an optical breadboard
Cuvette lifter for removal of cuvette
Probe input for sample temperature
NIST-traceable temperature calibration

  • Technical Specifications
    Number of cuvettes controlled
    1
    Typical use
    Absorbance
    Standard cuvette size (outside)
    12.5 mm x 12.5 mm
    Optical ports per cuvette
    2
    Optical port dimensions
    12 mm high x 10 mm wide
    Cuvette z-height
    8.5 mm or 15 mm
    Windowed jacket available
    No
    Factory set temperature range
    -40 °C to +110 °C
    Temperature range easily achievable
    -15 °C to +110 °C
    Temperature precision
    ±0.02 °C
    Temperature accuracy
    Better than ±0.15 °C from 0 ⁰C to +80 ⁰C
    Accuracy full range
    Better than ±0.3 ⁰C from ‐15 ⁰C to +110 ⁰C
    Temperature reproducibility
    Better than ±0.07 °C
    Thermistor probes accepted
    Series 400 or Series 500
    Magnetic stirring motor type
    DC
    Magnetic stirring speed range
    100-2500 rpm
    Default stirring speed
    1200 rpm
    Stirring speed best performance
    200-1800 rpm
  • Basic Package

    t2 Sport – Temperature-controlled cuvette holder
    TC 1/Single – Temperature Controller
    Base plate for mounting on an optical breadboard and post (standard z-height = 15 mm)
    BATH 10 – Circulator
    NIST-traceable calibration and performance data
    Accessories – Magnetic stir bars, tubing and cables

  • Accessories
