qX3/5301

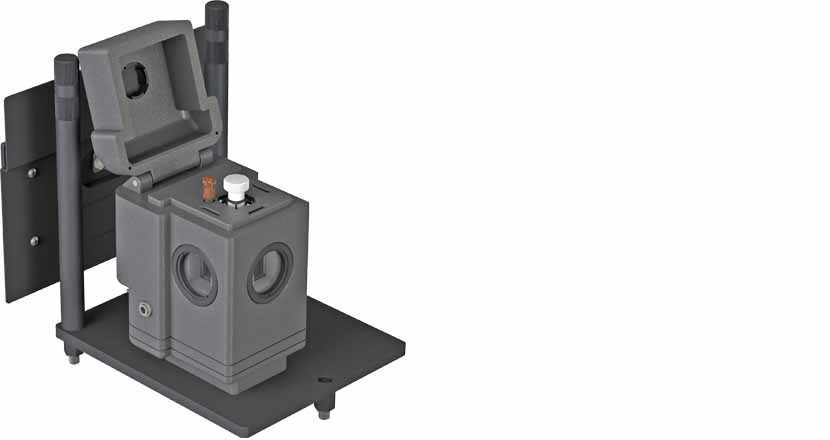

Air-cooled, Peltier-controlled cuvette holder for a Shimadzu RF-5301PC SpectrofluorophotometerThe qX3/5301 is a temperature-controlled cuvette holder with three optical ports for the Shimadzu RF-5301PC Spectrofluorophotometer. Use the qX3/5301 to set and maintain precise sample temperatures and stir at a steady reproducible rate, while bathing the cuvette in a controlled gaseous environment. Although dependent on rapid, precise Peltier technology, no circulating water is required for normal operation from 0 °C to 110 °C. Purchase the low temperature option, consisting of a windowed vest and capability for liquid cooling, and operate the qX3/5301 from 0 °C down to -35 °C. Purchase the extended temperature option to extend operation above 110 °C to 150 °C. Control the qX3/5301, using the TC 1B Temperature Controller included in the purchase price. For additional control and temperature monitoring, use Quantum Northwest’s computer control software, T-App, available for purchase.
Three optical ports
Rapid, precise temperature control
Precise stepper-motor-driven magnetic stirring
Lid to improve temperature stability
Threaded inserts to mount windows or filters
Optical slit holders to control illuminated volume
Windowed vest available for temperature extremes
Dry gas purge for work at low temperature
Sample tray for easy installation
Probe input for sample temperature
NIST-traceable temperature calibration
