qX2x2/Shimadzu

Dual, air-cooled, Peltier-control for Shimadzu UV-VIS Spectrophotometers
Product Overview

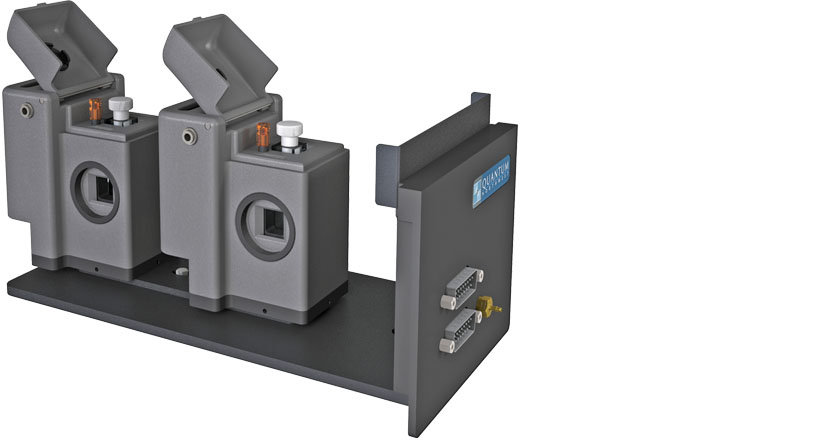

The qX2x2/Shimadzu is a pair of cuvette holders providing independent Peltier temperature control for both the sample and reference cuvettes in a Shimadzu Spectrophotometer. The qX2x2/Shimadzu replaces the sample tray (base and front panel) of almost any model of Shimadzu spectrophotometer. It is mounted on a base plate and has utilities brought to the front panel for convenient access. Use the qX2x2/Shimadzu to set and maintain precise sample temperatures and stir at steady reproducible rates, while bathing the cuvettes in a controlled gaseous environment. Although dependent on rapid, precise Peltier technology, no circulating water is required for normal operation from 0 °C to 110 °C. Purchase the low temperature option, consisting of a windowed vest and capability for liquid cooling, and operate the qX2x2/Shimadzu from 0 °C down to -30 °C. Purchase the extended temperature option to extend operation above 110 °C to 150 °C. Control the qX2x2/Shimadzu, using the TC 1B/Dual Temperature Controller included in the purchase price. For additional control and temperature monitoring, use Quantum Northwest’s computer control software, T-App, available for purchase. Special versions of this software are available with enhanced functionality for use with Shimadzu’s UV-1800 or UV-1900 spectrophotometers.

Product Features

Rapid, precise Peltier temperature control
Precise stepper-motor-driven magnetic stirring
Dry gas purge for work at low temperature
Lid to improve temperature stability
Threaded inserts to mount windows or filters
Optical slit holders to control illuminated volume
Cuvette lifter for removal of cuvette
Probe input for sample temperature
Complete sample tray for mounting
NIST-traceable temperature calibration
Full control for UV-1800 and UV-1900 with T-App(S)

  • Technical Specifications
    Number of cuvettes controlled
    2
    Typical use
    Absorbance (sample and reference)
    Standard cuvette size (outside)
    12.5 mm x 12.5 mm
    Optical ports per cuvette
    2
    Optical port dimensions
    12 mm high x 10 mm wide
    Cuvette z-height
    15 mm
    Windowed vest available
    yes
    Factory set temperature range
    -40 °C to +110 °C
    Temperature range easily achievable
    -5 °C to +110 °C
    Range with low temperature option
    -35 °C to +110 °C
    Range with extended temperature option
    -35 °C to +150 °C
    Temperature precision
    ±0.02 °C
    Thermistor probes accepted
    Probe/QNW3
    Magnetic stirring motor type
    Stepper under each cuvette
    Magnetic stirring speed range
    1-2500 rpm
    Default stirring speed
    1200 rpm
    Stirring speed best performance
    60-1800 rpm
  • Basic Package

    qX2x2 – Pair of temperature-controlled cuvette holders
    TC 1B/Dual – Dual-Channel Temperature Controller
    Base plate, posts, fasteners and front panel
    NIST-traceable calibration and performance data
    Magnetic stir bars, tubing for dry gas and cables
