qX2x2/PE365

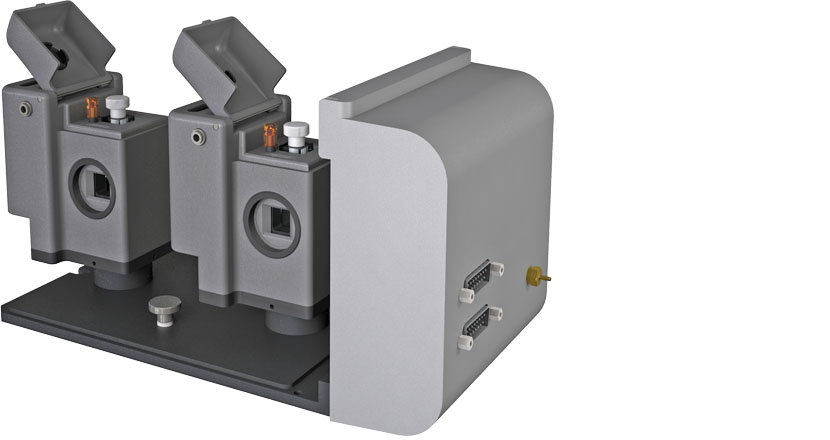

Dual, air-cooled, Peltier-control for the Perkin Elmer LAMBDA 365 UV/Vis SpectrophotometerThe qX2x2/PE365 is a pair of cuvette holders providing independent Peltier temperature control for both the sample and reference cuvettes in the Perkin Elmer LAMBDA 365 UV/Vis Spectrophotometer. The qX2x2/PE365 replaces the sample tray of the spectrophotometer. It is mounted on a base plate and has utilities brought to the front panel for convenient access. Use the qX2x2/PE365 to set and maintain precise sample temperatures and stir at steady reproducible rates, while bathing the cuvettes in a controlled gaseous environment. Although dependent on rapid, precise Peltier technology, no circulating water is required for normal operation from 0 °C to 110 °C. Purchase the low temperature option, consisting of a windowed vest and capability for liquid cooling, and operate the qX2x2/PE365 from 0 °C down to -30°C. Purchase the extended temperature option to extend operation above 110 °C to 150 °C. Control the qX2x2/ PE365, using the TC 1B/Dual Temperature Controller included in the purchase price. For additional control and temperature monitoring, use Quantum Northwest’s computer control software, T-App, available for purchase.
Rapid, precise Peltier temperature control
Precise stepper-motor-driven magnetic stirring
Dry gas purge for work at low temperature
Lid to improve temperature stability
Threaded inserts to mount windows or filters
Optical slit holders to control illuminated volume
Cuvette lifter for removal of cuvette
Probe input for sample temperature
Complete sample tray for mounting
NIST-traceable temperature calibration
