qX2/UV1280

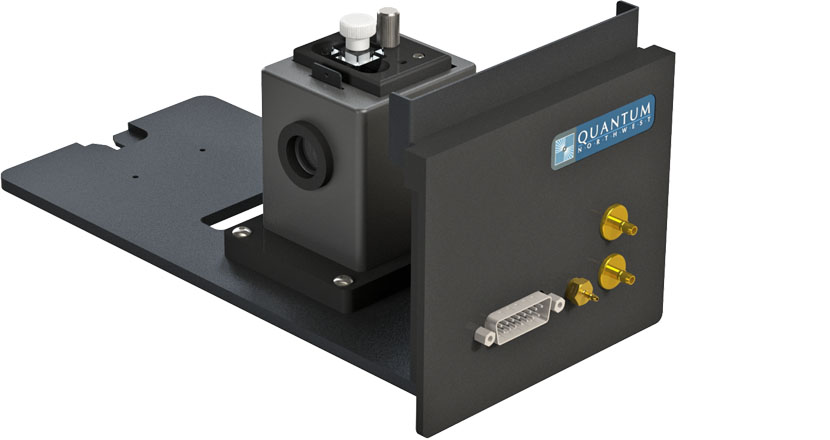

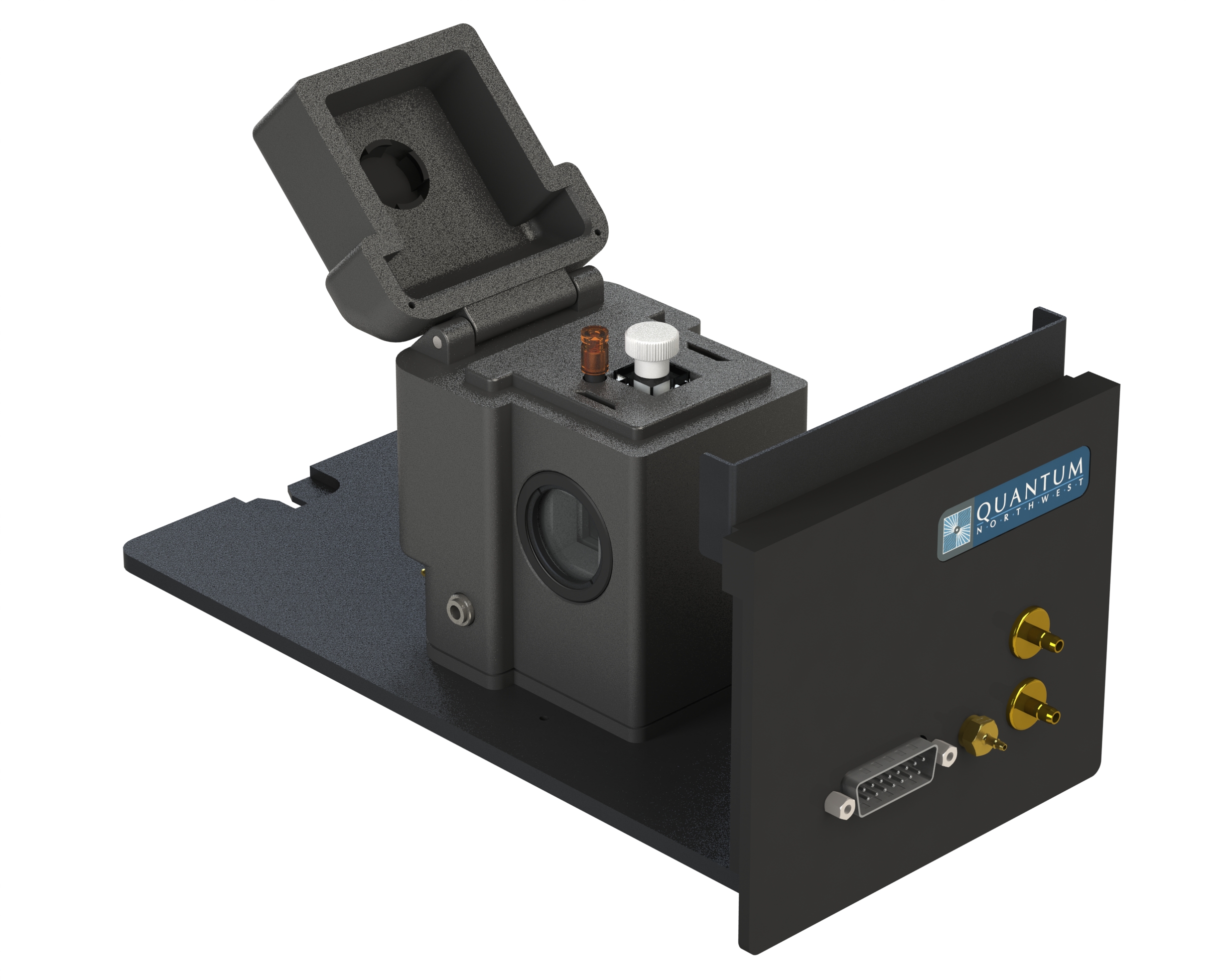

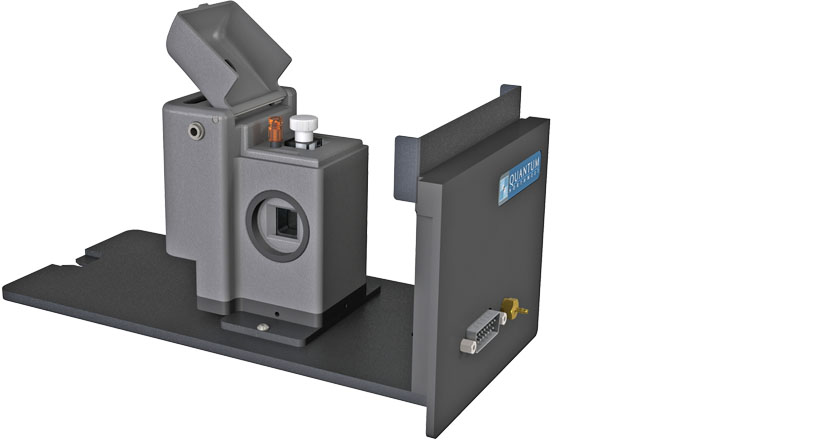

Air-cooled, Peltier-controlled cuvette holder for the single-beam Shimadzu UV-1280 UV-Vis SpectrophotometerThe qX2/UV1280 is a temperature-controlled cuvette holder with two optical ports for use in Shimadzu’s single beam UV-1280 spectrophotometer. The qX2/UV1280 replaces the sample tray (base and front panel) of the spectrophotometer, with utilities brought conveniently to the front panel. Use the qX2/UV1280 to set and maintain precise sample temperatures and stir at a steady reproducible rate, while bathing the cuvette in a controlled gaseous environment. Although dependent on rapid, precise Peltier technology, no circulating water is required for normal operation from 0 °C to 110 °C. Purchase the low temperature option, consisting of a windowed vest and capability for liquid cooling, and operate the qX2/UV1280 from 0 °C down to -35 °C. Purchase the extended temperature option to extend operation above 110 °C to 150 °C. Control the qX2/UV1280, using the TC 1B Temperature Controller included in the purchase price. For additional control and temperature monitoring, use Quantum Northwest’s computer control software, T-App, available for purchase.
Rapid, precise Peltier temperature control
Precise stepper-motor-driven magnetic stirring
Dry gas purge for work at low temperature
Lid to improve temperature stability
Threaded inserts to mount windows or filters
Optical slit holders to control illuminated volume
Cuvette lifter for removal of cuvette
Probe input for sample temperature
Complete sample tray for mounting
NIST-traceable temperature calibration
