qpod 2e

Customizable temperature-controlled sample compartment for use with fiber optic spectrometers
Product Overview

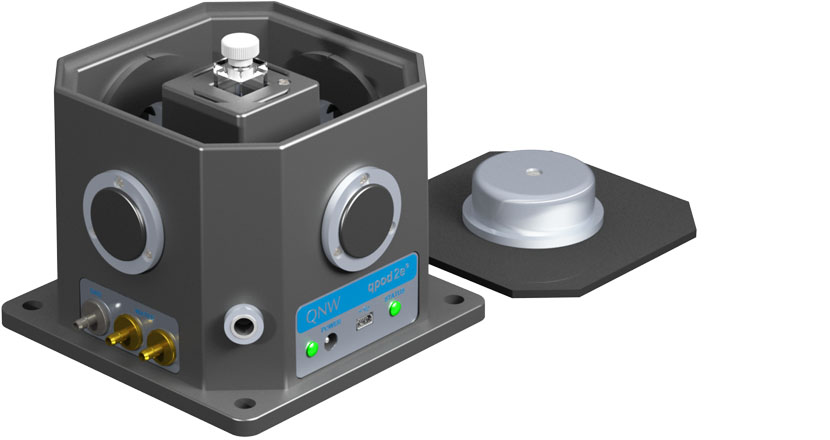

The qpod 2e is a compact spectrometer sample compartment containing a cuvette holder temperature controlled by an internal controller. The qpod 2e is a roughly square box about 120 mm on a side and 90 mm high. In the center is a temperature-controlled tower with optical ports on each of four sides and slit holders to control optical access. For mounting optical components, each of the four sides of the qpod has a mounting ring, thermally stable and precisely aligned with the tower. Add light sources, lenses, filters, polarizers, mirrors, spectrographs and detectors as needed for your experiment. Most applications of the qpod take advantage of fiber optics for transmitting light, but lasers, focused light sources and probes of various kinds may be used. A dry gas purge of the compartment enables easy use at low temperatures down to -30 °C. The qpod 2e readily achieves a high temperature of +110 °C. Operate the qpod on a lab bench or build it into your own full spectroscopy system. For computer control, add program T-App or write your own program utilizing simple text commands to control the TC 1 Temperature Controller.

Product Features

Rapid, precise control Peltier temperature control
No optics included
Optical slits for controlling light intensity
Precise Precise stepper-motor-driven magnetic stirring
Dry gas purge for entire optical chamber
Integrated PID temperature controller
Thermometer probe input for sample temperature
NIST-traceable temperature calibration

  • Technical Specifications
    Number of cuvettes controlled
    1
    Typical use
    Absorbance, fluorescence, Raman
    Standard cuvette size (outside)
    12.5 mm x 12.5 mm
    Optical ports per cuvette
    4
    Optical port dimensions
    10 mm diameter round
    Built-in optical slit holders
    4 per cuvette
    Windowed jacket available
    No
    Normal factory set temperature range
    -40 °C to +105 °C
    Temperature range easily achievable
    -15 °C to +105 °C
    Range with special techniques
    -30 °C to +105 °C
    Temperature precision
    ±0.01 °C
    Temperature accuracy
    ±0.15 °C from -20 ⁰C to +105 ⁰C
    Temperature reproducibility
    Better than ±0.07 °C
    Thermistor probes accepted
    Series 400 or Series 500
    Magnetic stirring motor type
    Stepper
    Magnetic stirring speed range
    1-2500 rpm
    Default stirring speed
    1200 rpm
    Stirring speed best performance
    1-2000 rpm
  • Basic Package

    qpod 2e – Temperature-controlled sample compartment
    Q-Blue – computer program to control temperature and magnetic stirring
    AC Adapter – 12 Volt DC power supply for the qpod 2e
    USB cable – Connection to the qpod 2e if Bluetooth is unavailable
    Bath 120 – Bucket, pump and fittings to provide circulating water to the Peltier unit
    NIST-traceable calibration and performance data
    Tool kit, containing a hex screw driver for optical adjustments, a stir bar for use in the cuvette a set assorted optical slits to limit optic access to the cuvette plastic blanks to cover unused optical ports on the qpod 2e
