Cyl 100/Shimadzu

100mm Cylindrical Cell Holder with Peltier Temperature Control for Shimadzu UV-Vis Spectrophotometers
Product Overview

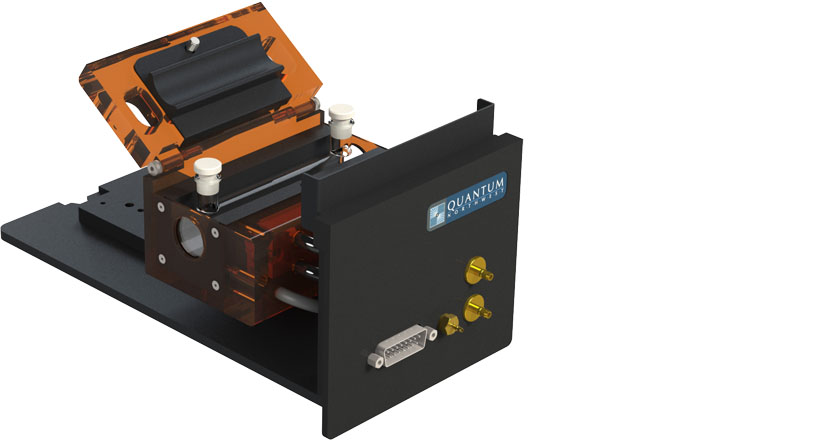

The Cyl 100/Shimadzu provides Peltier-based temperature control for a 100 mm pathlength cylindrical cuvette in any of the Shimadzu UV-VIS Spectrophotometers. Place the cuvette in a cradle and screw down a cover, thus surrounding the cuvette with temperature-controlled surfaces. Place a magnetic stir bar in the cuvette under each stopper. Recent studies verify that magnetic stirring helps maintain uniform temperature in the cell.

The Cyl 100/Shimadzu replaces the cuvette holder base and the front panel of the spectrophotometer, with utilities brought conveniently to the front panel. Operate the TC 1/Single Temperature Controller using the menu button or through program T-App available from Quantum Northwest. When this unit is used in a Shimadzu UV-1800 or the impressive new Shimadzu UV-1900, a special version of T-App, called T-App(S) can be used to record absorbances from the spectrophotometer and plot them vs temperature.

Product Features

Rapid, precise Peltier temperature control
Magnetic stirring at each end of the cell
Dry gas purge for work at low temperature
Full sample tray for mounting in spectrometer
Probe input for sample temperature
NIST-traceable temperature calibration
Full software control through program T-App(S)

  • Technical Specifications
    Number of cuvettes controlled
    1
    Number of temperatures controlled
    1
    Typical use
    Absorbance with 100 mm path
    Standard cuvette size (outside)
    102.5 mm
    Beam ports per cuvette
    2
    Entrance port diameter
    12 mm
    Factory set temperature range
    -40 °C to +105 °C
    Temperature range easily achievable
    -20 °C to +110 °C
    Temperature precision
    ±0.01 °C
    Temperature accuracy full range
    Within ±0.30
    Temperature reproducibility
    Better than ±0.07
    Thermistor probes accepted
    Series 400 or Series 500
    Magnetic stirring motor type
    Stepper under each stopper
    Magnetic stirring speed range
    1-2500
    Default stirring speed
    1200 rpm
    Stirring speed best performance
    60-1800 rpm
  • Basic Package

    Cyl 100 – Temperature-controlled cuvette holder
    TC 1/Single – Temperature Controller
    Sample compartment tray with front panel utility access
    Bath 10 – Circulator
    NIST-traceable calibration and performance data
    Accessories – Magnetic stir bar, tubing, cables and opaque cap
    Manual and Installation Guide
