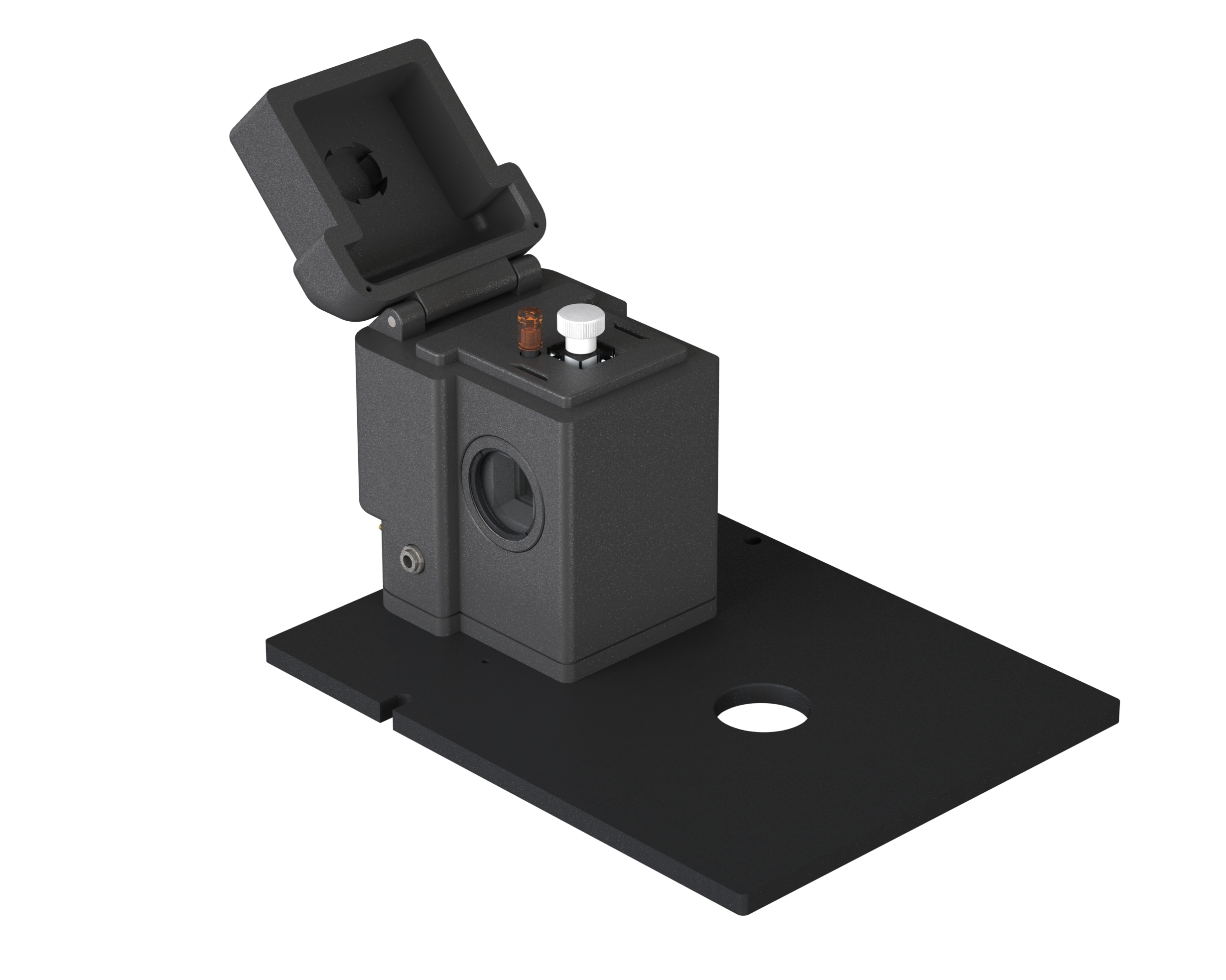

Brr 20/EVO
Peltier-controlled cuvette holder with extended low temperature response for the Evolution 300 and 600 SpectrophotometersThe Brr 20/EVO is a temperature-controlled cuvette holder for the range of +110 °C down to -55 °C. It is designed for use in Thermo Scientific™ Evolution™ 300 or 600 Spectrophotometers. with absorption spectroscopy. Simply replace the sample cuvette holder and its mounting plate in either the Utility connections run down in the front of the instrument through slots provided for this purpose. Use the Brr 20/EVO to set and maintain precise sample temperatures and stir at a steady reproducible rate, while bathing the cuvette in a controlled gaseous environment. This product is provided with a windowed vest to enhance performance at low temperatures and minimize condensation that may form on the windows. Circulating water is used to remove heat from the Peltier heat exchanger. Purchase the extended temperature option to extend operation above 110 °C to 150 °C. Control the Brr 20/EVO, using the TC 1B Temperature Controller included in the purchase price. For additional control and temperature monitoring, use Quantum Northwest’s computer control software, T-App, available for purchase.
Rapid, precise Peltier temperature control -55 °C to +110 °C
Precise stepper-motor-driven magnetic stirring
Dry gas purge for work at low temperature
Insulated lid to improve temperature stability
Threaded inserts to mount windows or filters
Cuvette lifter for removal of cuvette
Probe input for sample temperature
Base and post for mounting in the spectrophotometer
NIST-traceable temperature calibration
