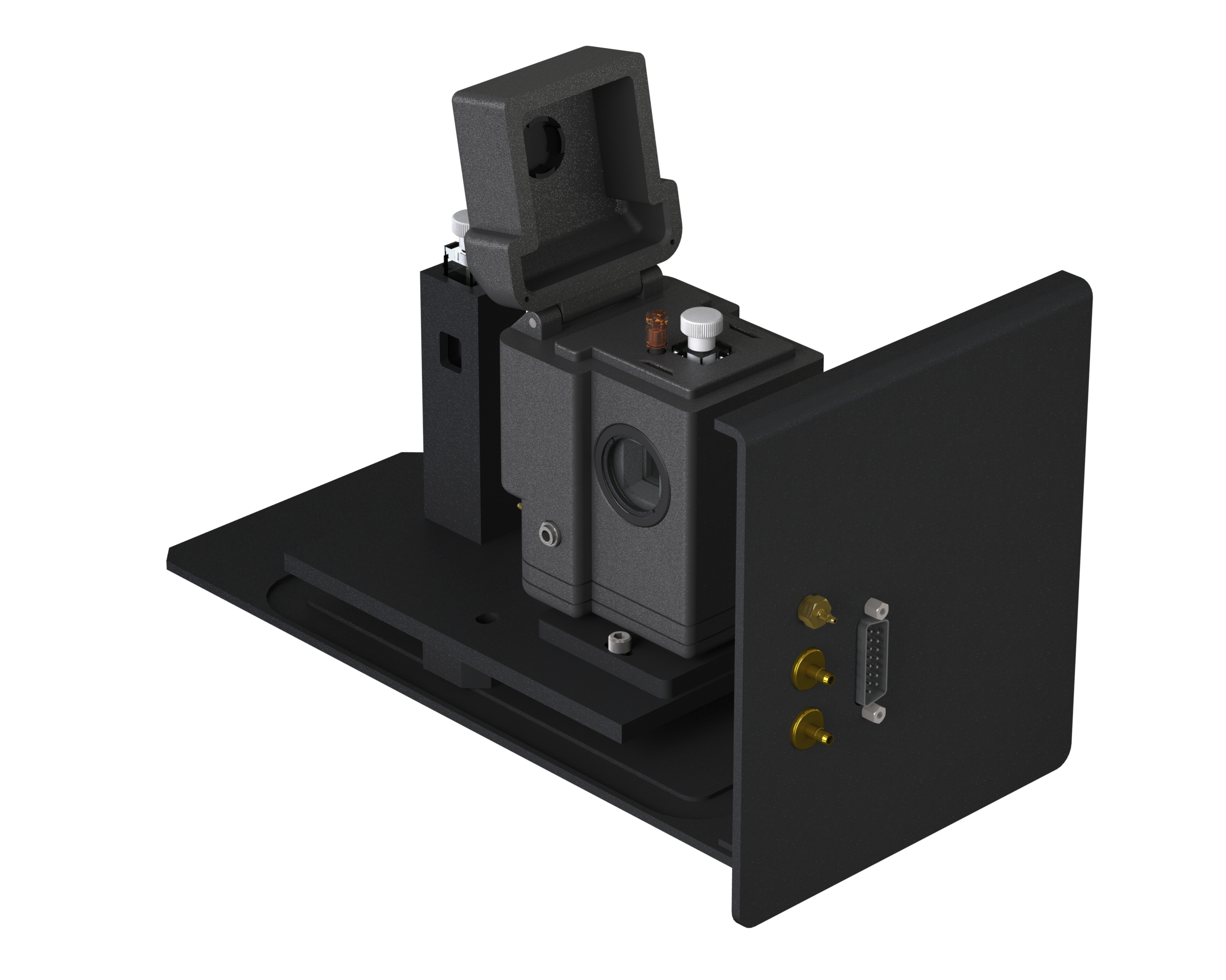

Brr 20/Dynamica
Peltier-controlled cuvette holder with extended low temperature response for Dynamica Halo DB-30 UV/Visible Double Beam SpectrophotometerThe Brr 20/Dynamica is a temperature-controlled cuvette holder for the range of +110 °C down to -55 °C. It is designed for use in your Dynamica Halo DB-30 UV/Visible Double Beam Spectrophotometer. The Brr 20/Dynamica replaces the sample tray (base and front panel) of the spectrophotometer, with utilities brought conveniently to the front panel. The temperature-controlled cell holder is placed in the sample position and a second cell holder for the range of +110 °C down to -55 °C and a second cell holder without temperature control is placed in the reference position. Use the Brr 20/Dynamica to set and maintain precise sample temperatures and stir at a steady reproducible rate, while bathing the cuvette in a controlled gaseous environment. This product is provided with a windowed vest to enhance performance at low temperatures and minimize condensation that may form on the windows. Circulating water is used to remove heat from the Peltier heat exchanger. Purchase the extended temperature option to extend operation above 110 °C to 150 °C. Control temperature through the spectrophotometer software.
Rapid, precise Peltier temperature control -55 °C to +110 °C
Precise stepper-motor-driven magnetic stirring
Dry gas purge for work at low temperature
Insulated lid to improve temperature stability
Threaded inserts to mount windows or filters
Cuvette lifter for removal of cuvette
Probe input for sample temperature
Complete sample tray for mounting
NIST-traceable temperature calibration
Fully integrated software control
